Automatic Test Box Ver.3

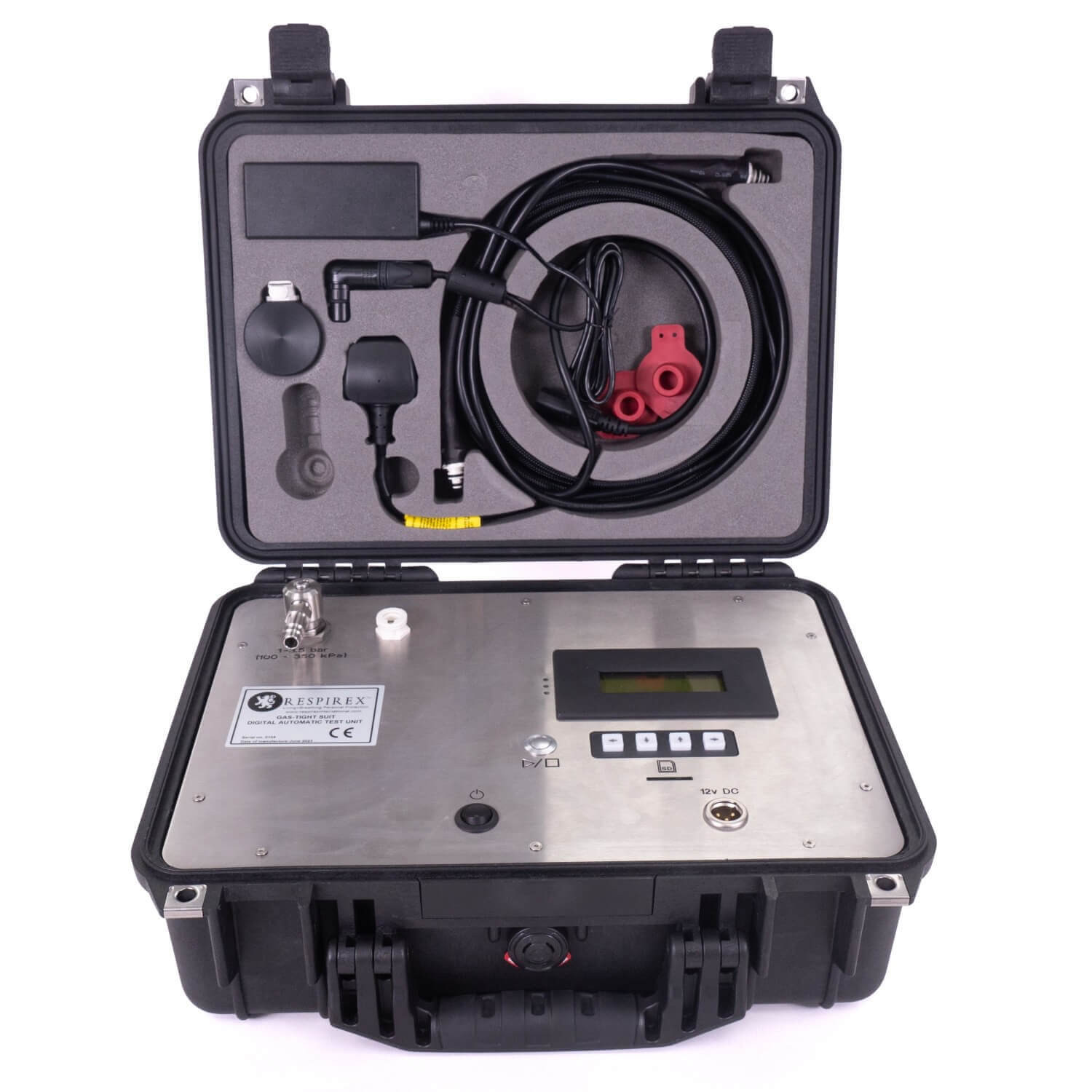

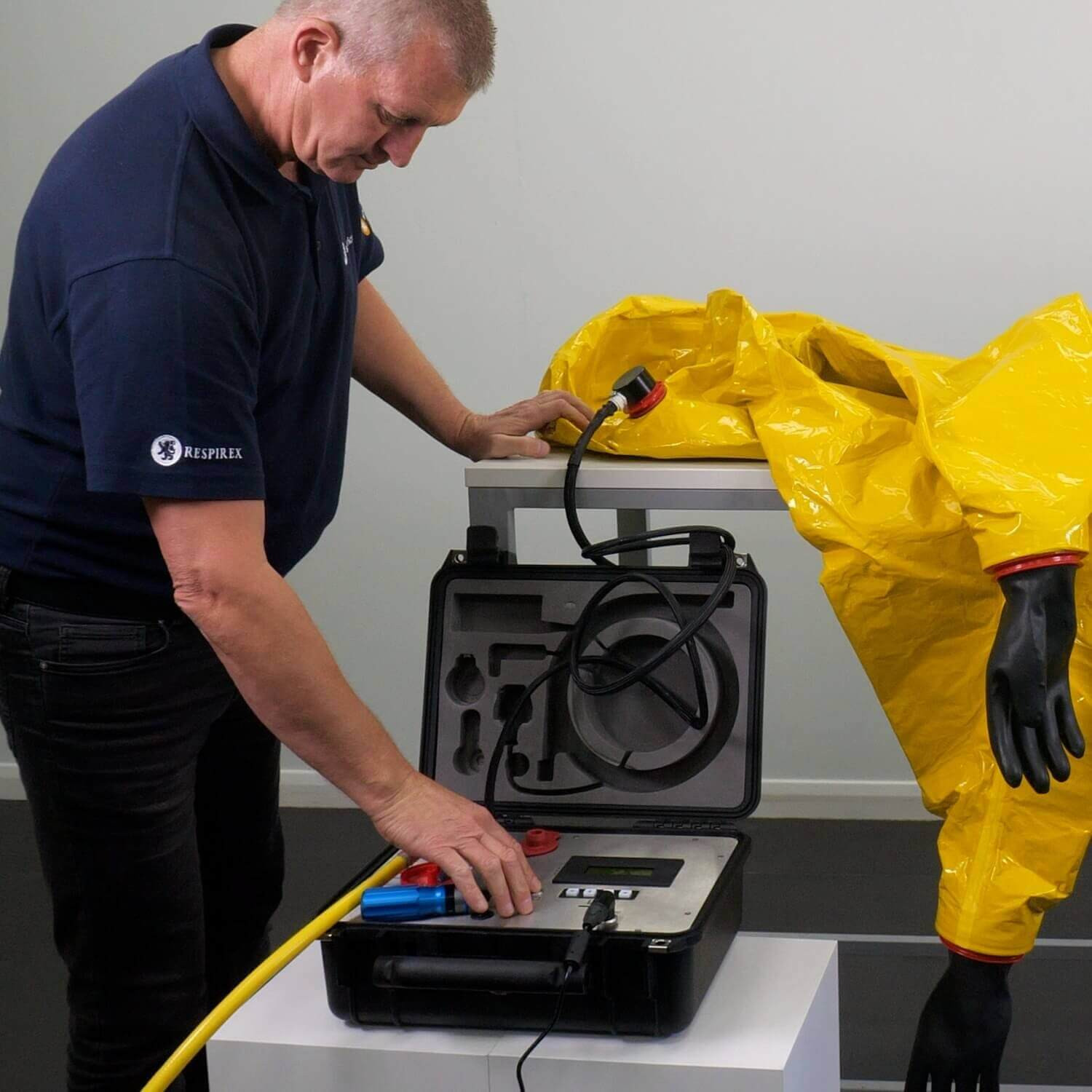

A computer controlled testing unit that automatically inflates a gas-tight suit from a compressed air supply (max 3.5 bar) and performs a pressure test giving a clear progress/status display and pass or fail indication at the end of the test.

Request a Quote Find a Distributor

Compare

Auto Test Box Open.jpg Video

Product Features

  • Designed specifically for determining the leak tightness of Respirex gas-tight chemical protection suits (internal pressure test) to the ISO 17491-1:2012 standard as stipulated in EN943-2:2019 and EN943-1:2015+A1:2019
  • Simple to operate with minimal training required
  • Reduction in labour costs
  • Cannot damage the suit by over inflation
  • Single connection to the suit
  • Supplied with multi-region power adapter with UK, EU and US cables
  • Compliant with the European low voltage and EMC directives
  • Data collection available via SD memory card
  • Status indication LEDs clearly show current state (inflating & settling [Yellow blinking] testing [solid yellow] & pass [green] or fail [red])
  • Optional air pump available

Certification

Supplied With

  • 3x Suit bungs to block exhalation valves
  • 1x Suit inflation hose with exhalation valve test plug
  • 1x Multi-region power adapter with UK, EU and US power leads

Sizing

  • Product Code G02700
  • Weight 6.5kg / 14.3 lbs
  • Dimensions (LxWxH) 41x34x18 cm / 16.1x13.4x7 in
  • Inlet Coupling CJEN Plug (Standard), other couplings on request







Please tick the box below if you would like occasional email updates.

Request a Quote

Product Image

Automatic Test Box Ver.3








Similar Products

Manual Test Box.jpg

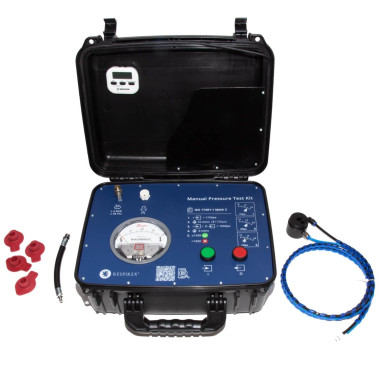

Manual Test Box
